KBE 7000 Series Enclosed Track Conveyor Chain
Heavy-duty enclosed track conveyor chain with 200 mm pitch, 70 kg load per wheel and 7000 kgf minimum ultimate tensile strength.
- Chain Pitch
- 200 mm
- Load Capacity
- 70 kg per load wheel
- Min. Ultimate Tensile Strength
- 7000 kgf
- Chain Material
- Carbon steel, heat treated
Overview
A heavy-duty enclosed track conveyor chain that uses a two-wheel, load-dispersing configuration to reduce the load on each bearing. The horizontal and vertical wheels share the chain tension evenly through curves, which also extends track life.
The cross joints are forged alloy steel and interlock with the chain links without added fittings such as cotter pins, so no connecting parts can work loose. The chain is carbon steel, heat treated for flexible steering, tensile strength and load capacity, and both wheels use purpose-designed bearings.
Available Versions
- HW — horizontal wheel, solid bearing
- HVW — horizontal & vertical wheel, solid bearing

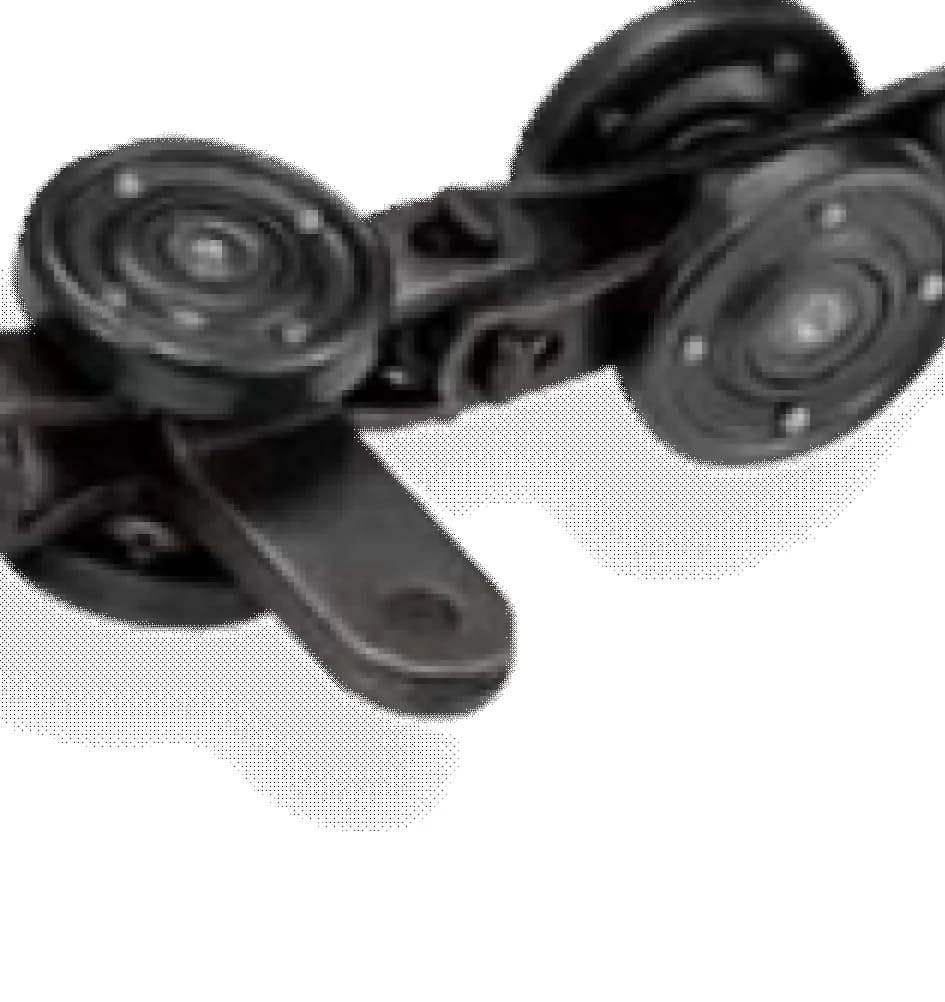

- Chain with hanger (HW or HVW, solid bearing)

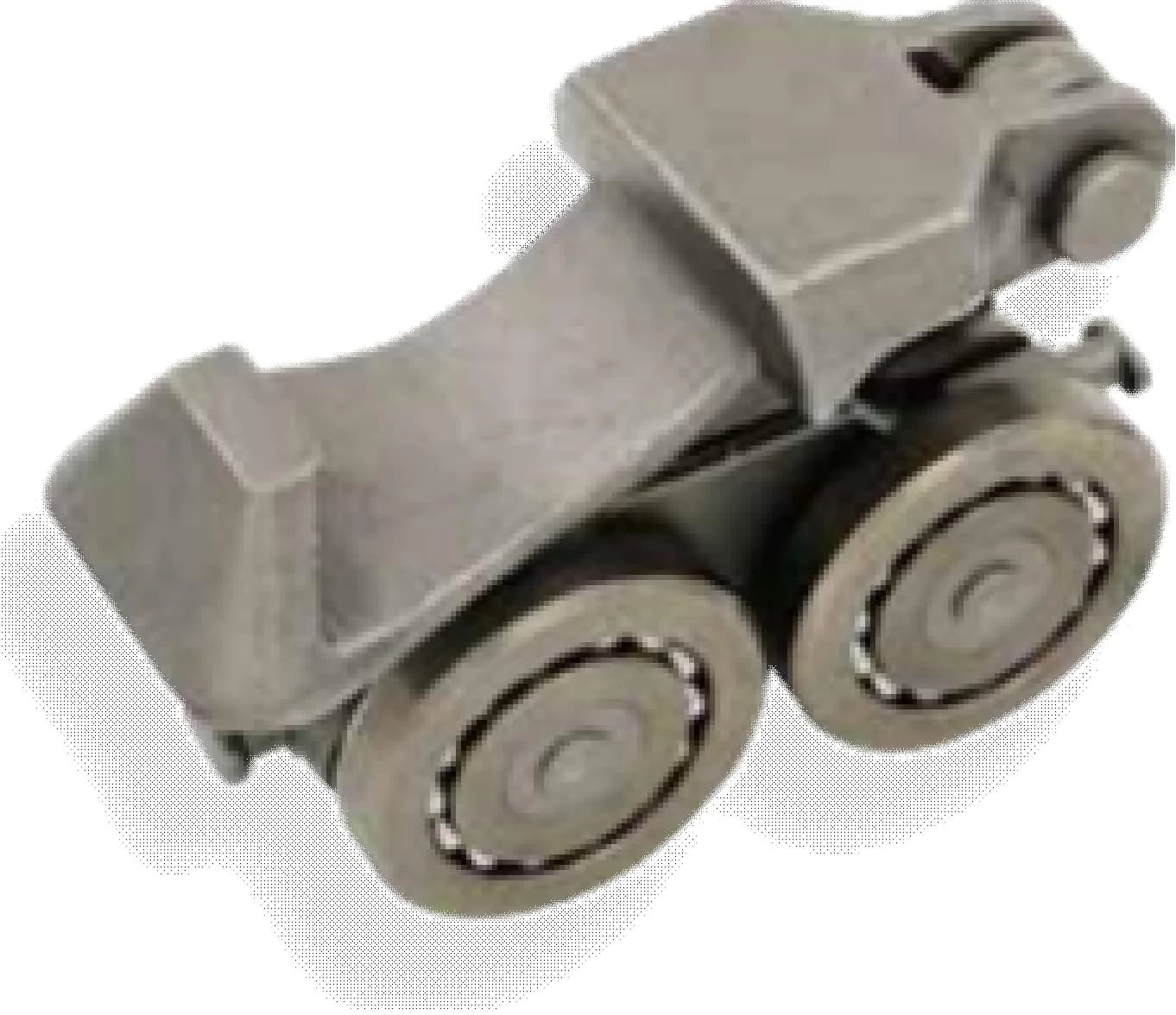

- Chain pusher
Technical Specifications
- Chain Pitch
- 200 mm
- Load Capacity
- 70 kg per load wheel
- Min. Ultimate Tensile Strength
- 7000 kgf
- Chain Material
- Carbon steel, heat treated
- Cross Joints
- Forged alloy steel
