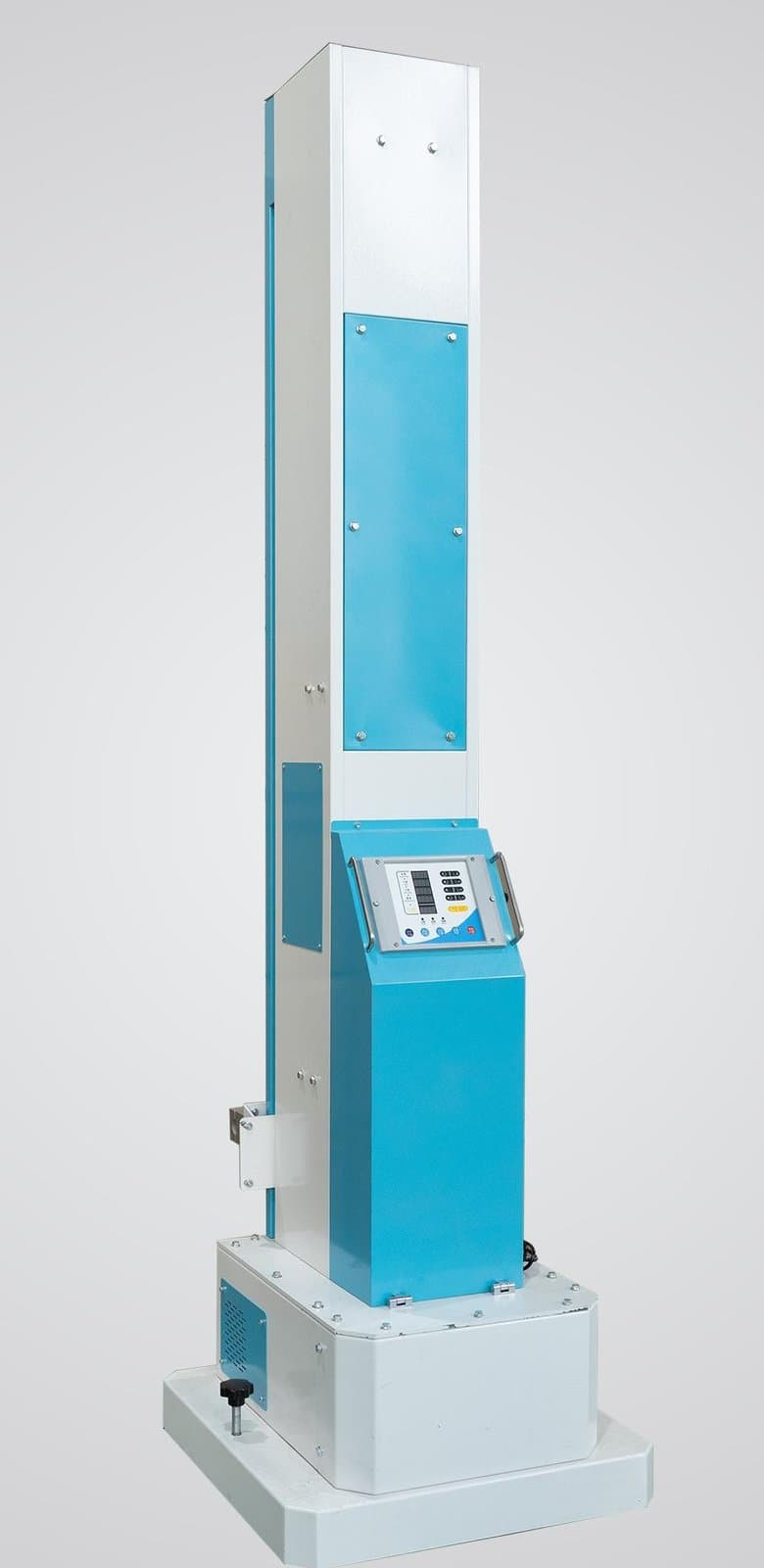

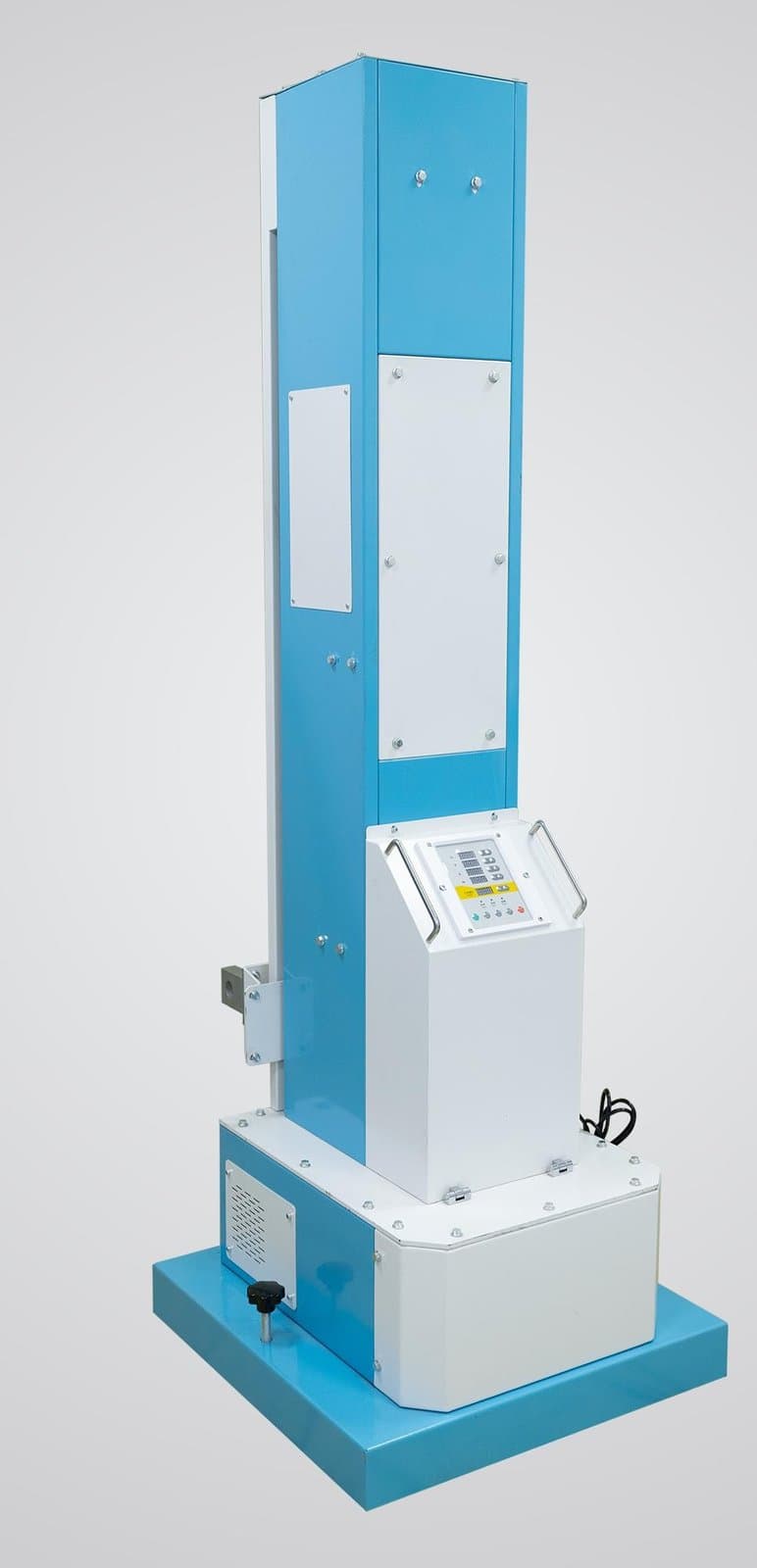

KBE-R100 Reciprocator
Reciprocator carrying up to 5 automatic guns, with 8 stored programs, adjustable speed and stroke up to 3 m.
- Input Voltage
- 220 V
- Frequency
- 50–60 Hz
- Motor Power
- 0.75 kW / 1.1 kW
- Stroke
- 1.5 / 2 / 2.5 / 3 m as standard (others customisable)
Overview
The KBE-R100 reciprocator moves automatic spray guns for powder coating lines. The height can be designed according to different requirements, with an LED control panel and a freely adjustable movement range.
Suited to large and simple workpieces that require rapid spraying.
Key Features
- Carries up to 5 automatic guns
- 8 stored programs
- Adjustable speed, 0–50 m/min
- Height designed to your requirements, freely adjustable movement range
Height & Travel Options
- Total height 2.5 m — effective travel 1.5 m (lowest 0.7 m, highest 2.2 m)
- Total height 3 m — effective travel 2 m (lowest 0.7 m, highest 2.7 m)
- Total height 3.5 m — effective travel 2.5 m (lowest 0.7 m, highest 3.2 m)
- Total height 4 m — effective travel 3 m (lowest 0.7 m, highest 3.7 m)
Applications
- Large and simple workpieces that require rapid spraying
Technical Specifications
- Input Voltage
- 220 V
- Frequency
- 50–60 Hz
- Motor Power
- 0.75 kW / 1.1 kW
- Stroke
- 1.5 / 2 / 2.5 / 3 m as standard (others customisable)
- Speed
- 0–50 m/min (adjustable)
- Max. Load Capacity
- 5 automatic guns
- Stored Programs
- 8 modes
