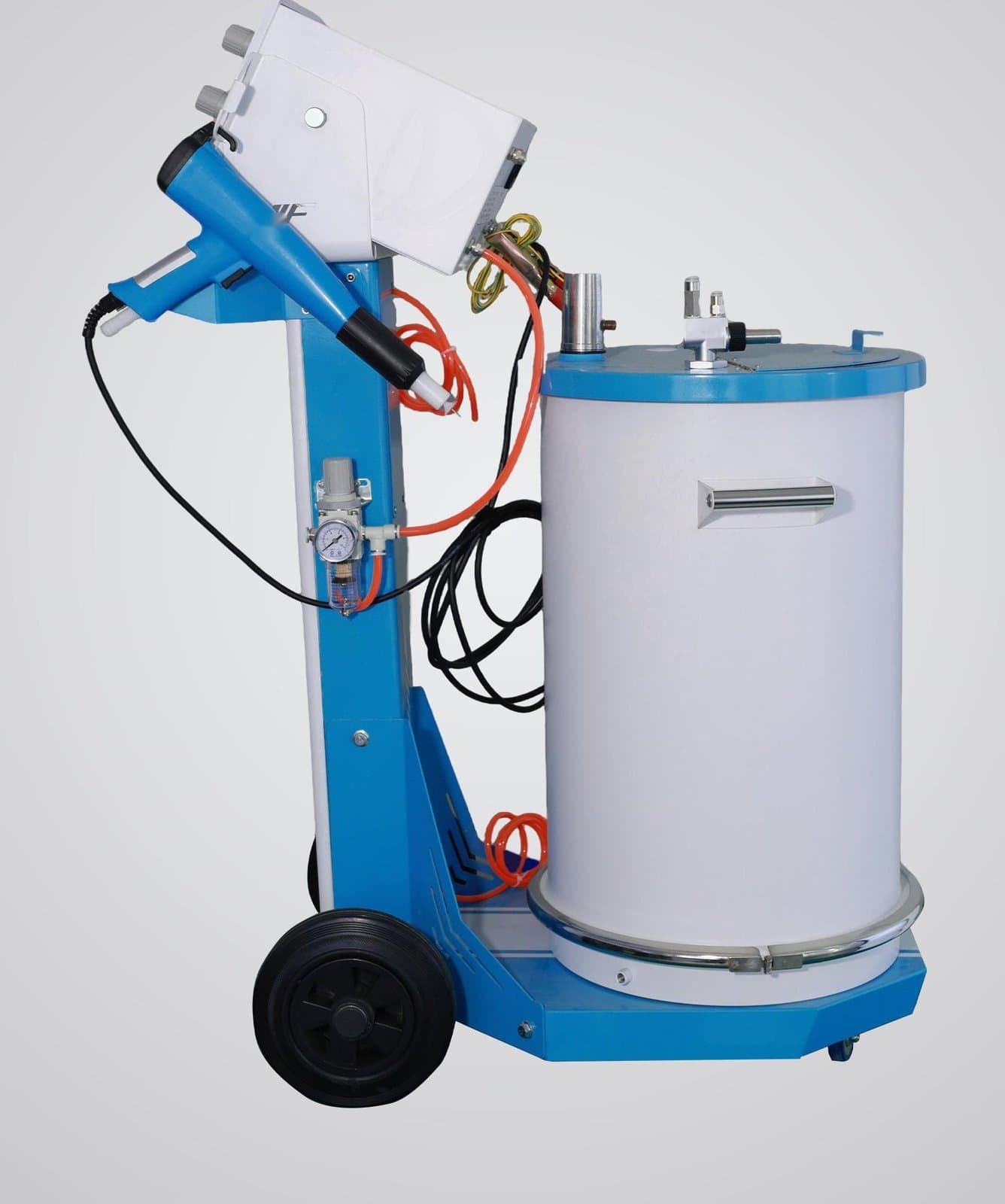

Powder Coating Spray Machine
KBE-M20T

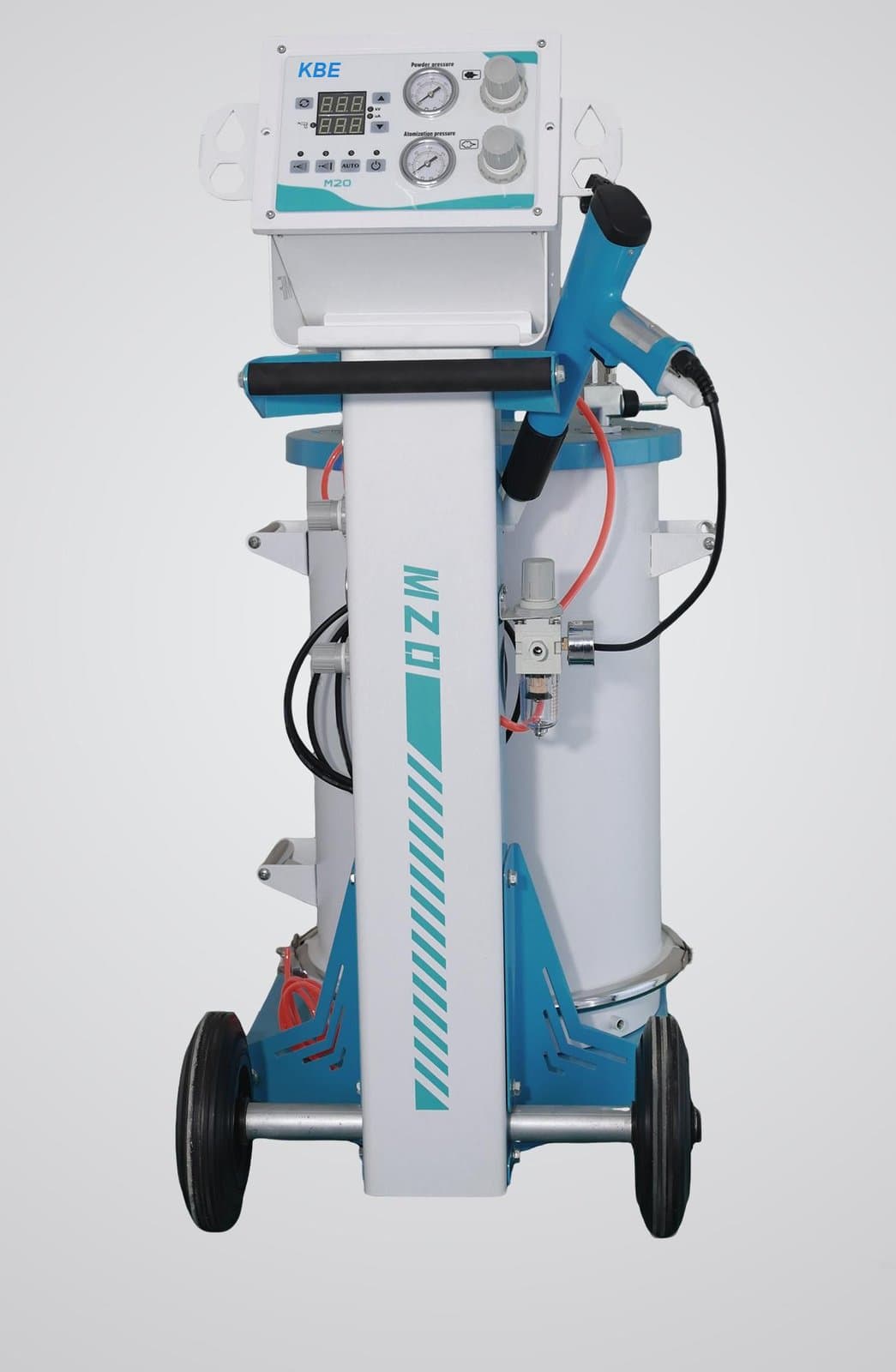

Trolley-mounted M20T configuration of the KBE-M20 electrostatic powder coating machine.
Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.
- Power Supply
- 220V / 110V (customisable)
- Frequency
- 50/60 Hz
- Gun Weight
- 400 g
- Rated Output Voltage
- 24 V DC
Overview
The KBE-M20 electrostatic powder coating machine forms a uniform coating thickness with excellent adhesion and reduces powder waste. Its reliable quality keeps operating and maintenance costs low.
Supplied with the controller, manual powder spray gun, powder pump, oil-water separator and powder bucket. The M20 controller can also be supplied as a compact unit with a choice of powder containers.
Key Features
- Uniform coating thickness and excellent adhesion
- Reduces powder waste
- Low operating and maintenance cost

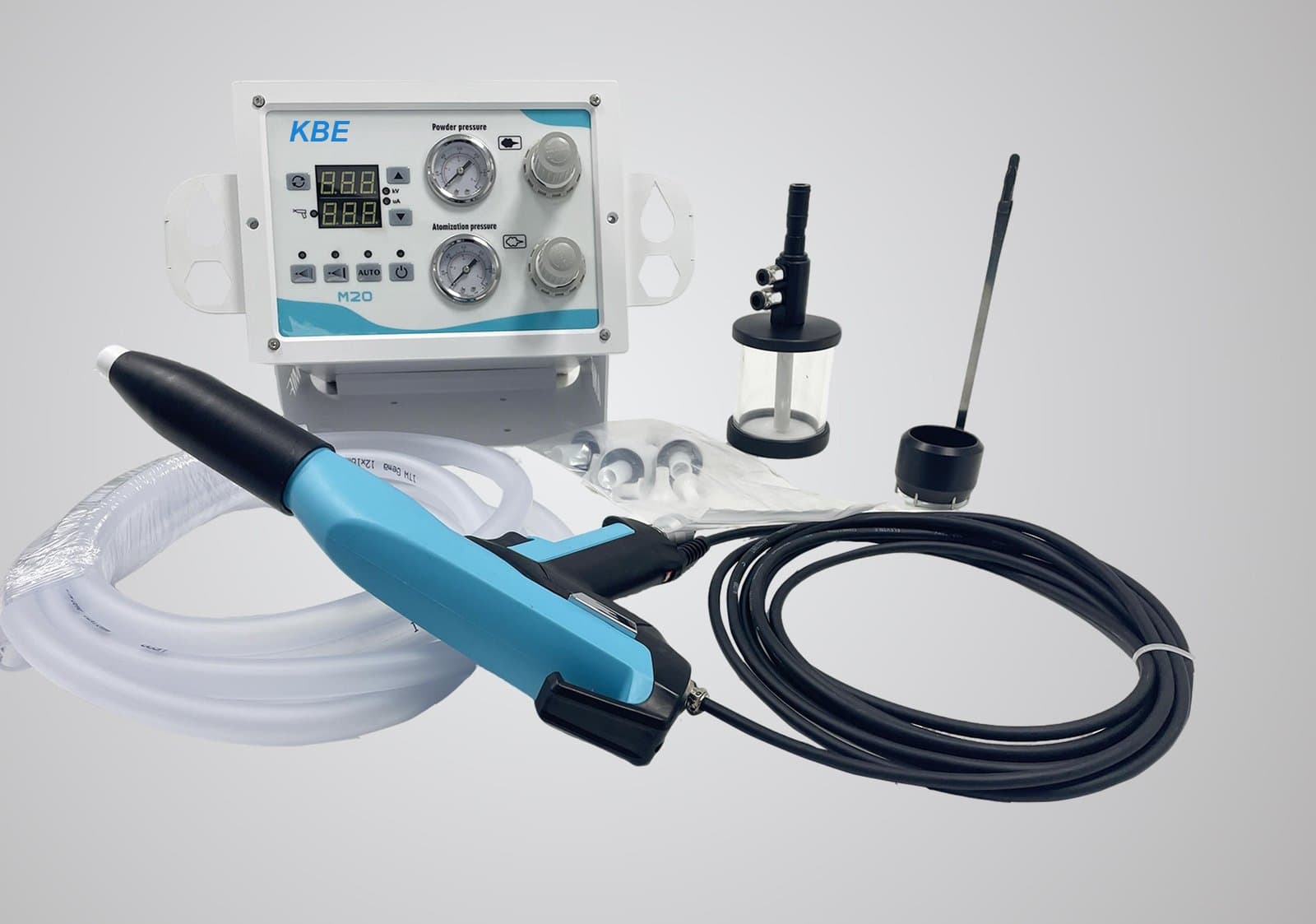

Supplied With

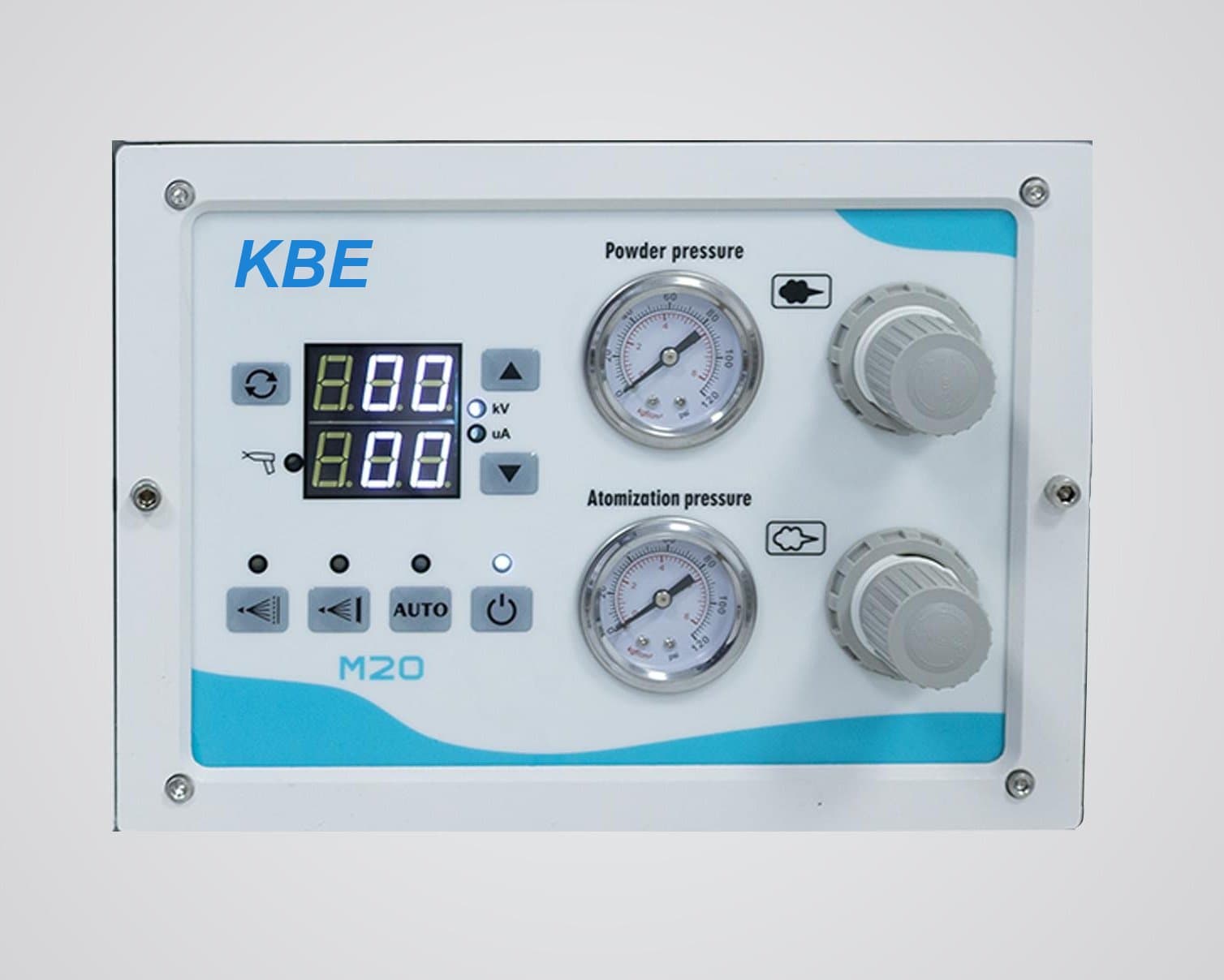

- Controller
- Manual powder spray gun
- Powder pump
- Oil-water separator
- Powder bucket

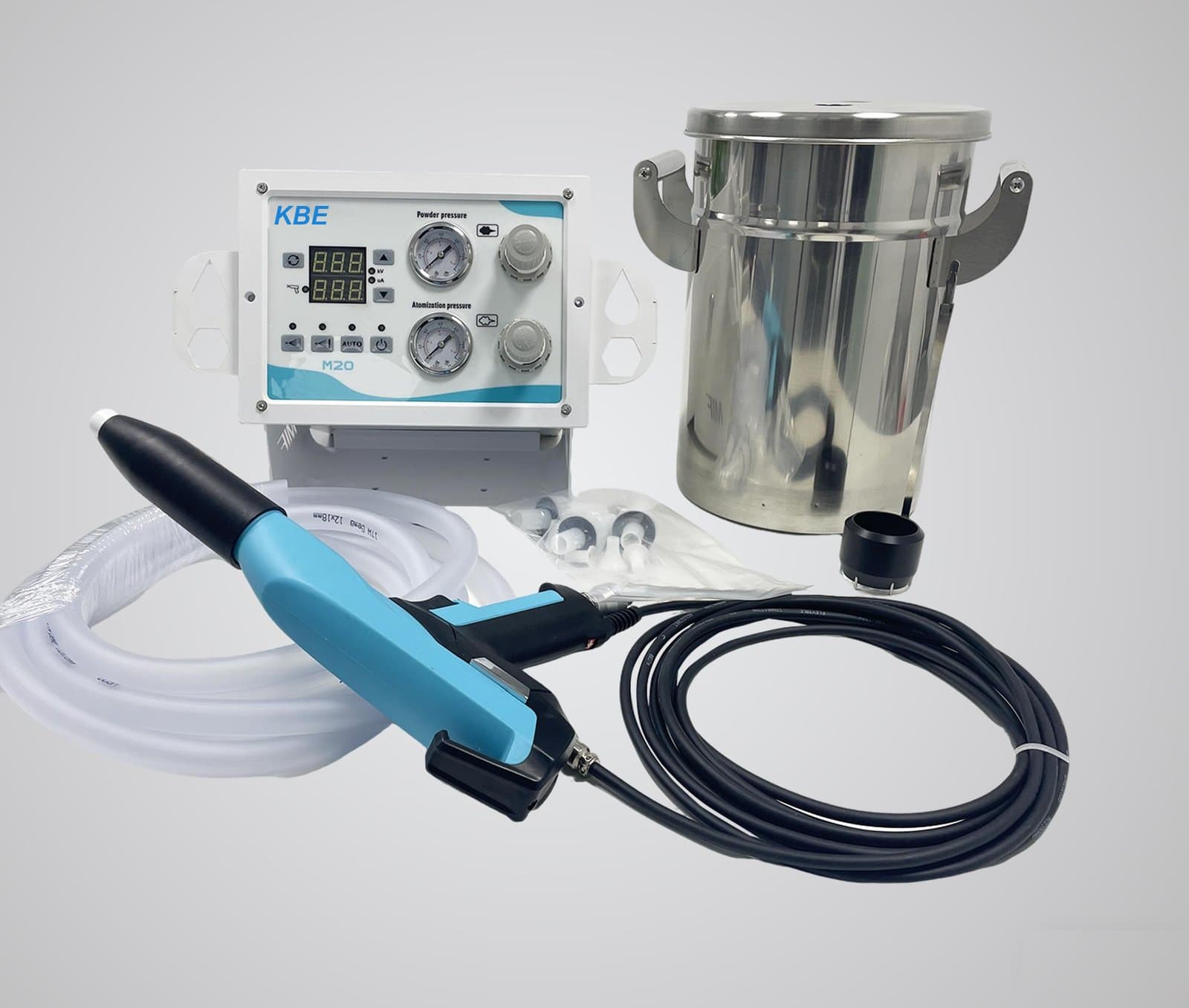

Compact Configuration (M20-D)
- Size 550 × 750 × 1100 mm, weight 28 kg
- Powder barrel 1: 10 × 10 × 28 cm, capacity 1 L
- Powder barrel 2: 20 × 20 × 30 cm, capacity 8 L
- Powder barrel 3: 8.2 × 8.2 × 9.5 cm, capacity 200 g
Technical Specifications
- Power Supply
- 220V / 110V (customisable)
- Frequency
- 50/60 Hz
- Gun Weight
- 400 g
- Rated Output Voltage
- 24 V DC
- Max. Output Current
- 180 µA
- Max. Powder Injection
- 650 g/min
- Gun Cable Length
- 4 m
- Powder Duct Length
- 3.8 m
- Machine Size
- 670 × 480 × 1100 mm
- Weight
- 28 kg
- Powder Barrel Size
- 600 × 400 mm
