Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.

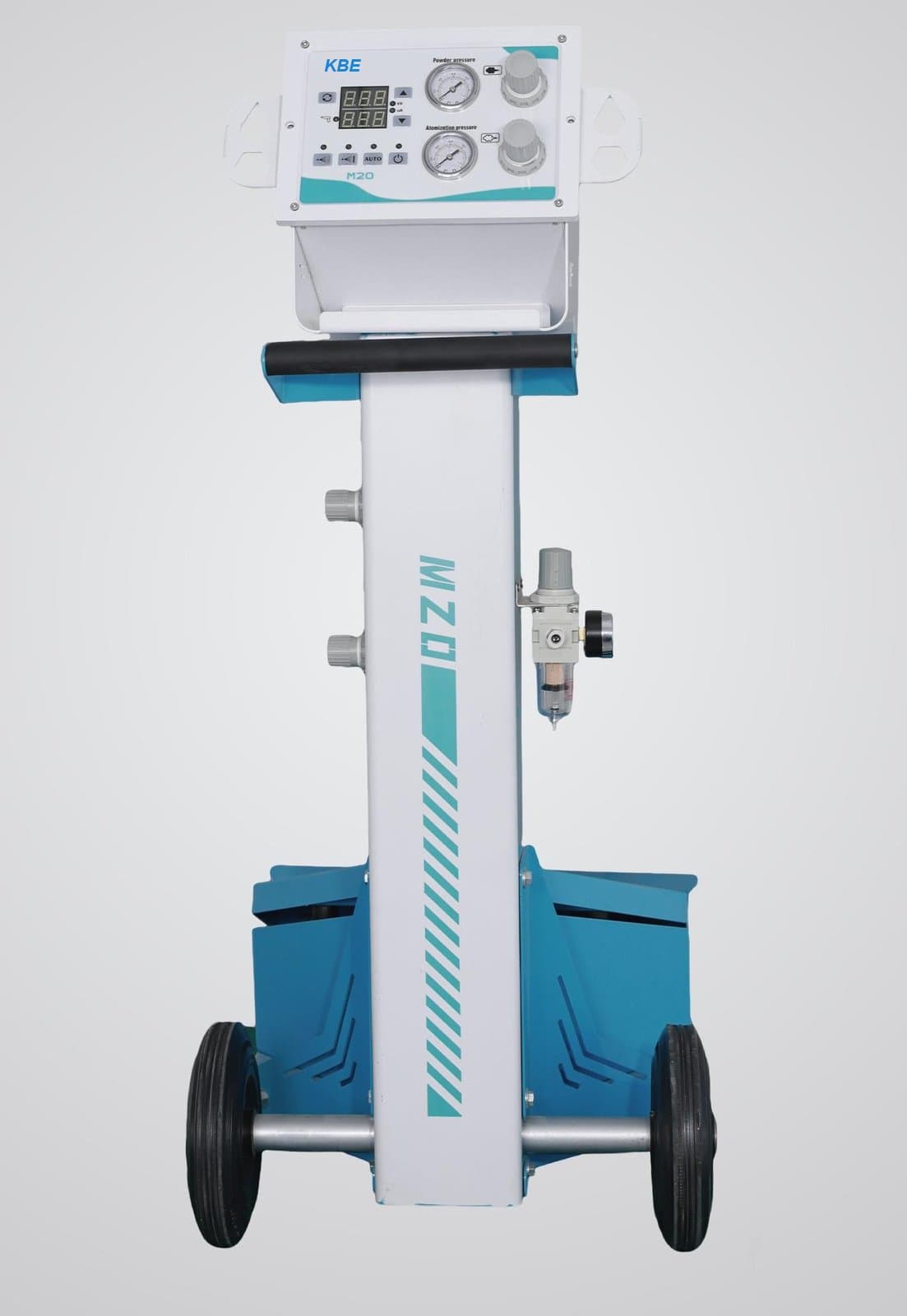

Powder Coating Spray Machine
KBE-M20T
Trolley-mounted M20T configuration of the KBE-M20 electrostatic powder coating machine.
- Power Supply
- 220V / 110V (customisable)
- Frequency
- 50/60 Hz
- Gun Weight
- 400 g
- Rated Output Voltage
- 24 V DC
Overview
The KBE-M20T is a trolley-mounted configuration of the M20 electrostatic powder coating machine. It forms a uniform coating thickness with excellent adhesion and reduces powder waste, while its reliable quality keeps operating and maintenance costs low.
Supplied with the controller, manual powder spray gun, powder pump and oil-water separator.
Key Features
- Uniform coating thickness and excellent adhesion
- Reduces powder waste
- Low operating and maintenance cost
Supplied With
- Controller
- Manual powder spray gun
- Powder pump
- Oil-water separator
Technical Specifications
- Power Supply
- 220V / 110V (customisable)
- Frequency
- 50/60 Hz
- Gun Weight
- 400 g
- Rated Output Voltage
- 24 V DC
- Max. Output Current
- 180 µA
- Max. Powder Injection
- 650 g/min
- Gun Cable Length
- 4 m
- Powder Duct Length
- 3.8 m
- Machine Size
- 670 × 480 × 1100 mm
- Weight
- 28 kg
- Powder Barrel Size
- 600 × 400 mm
