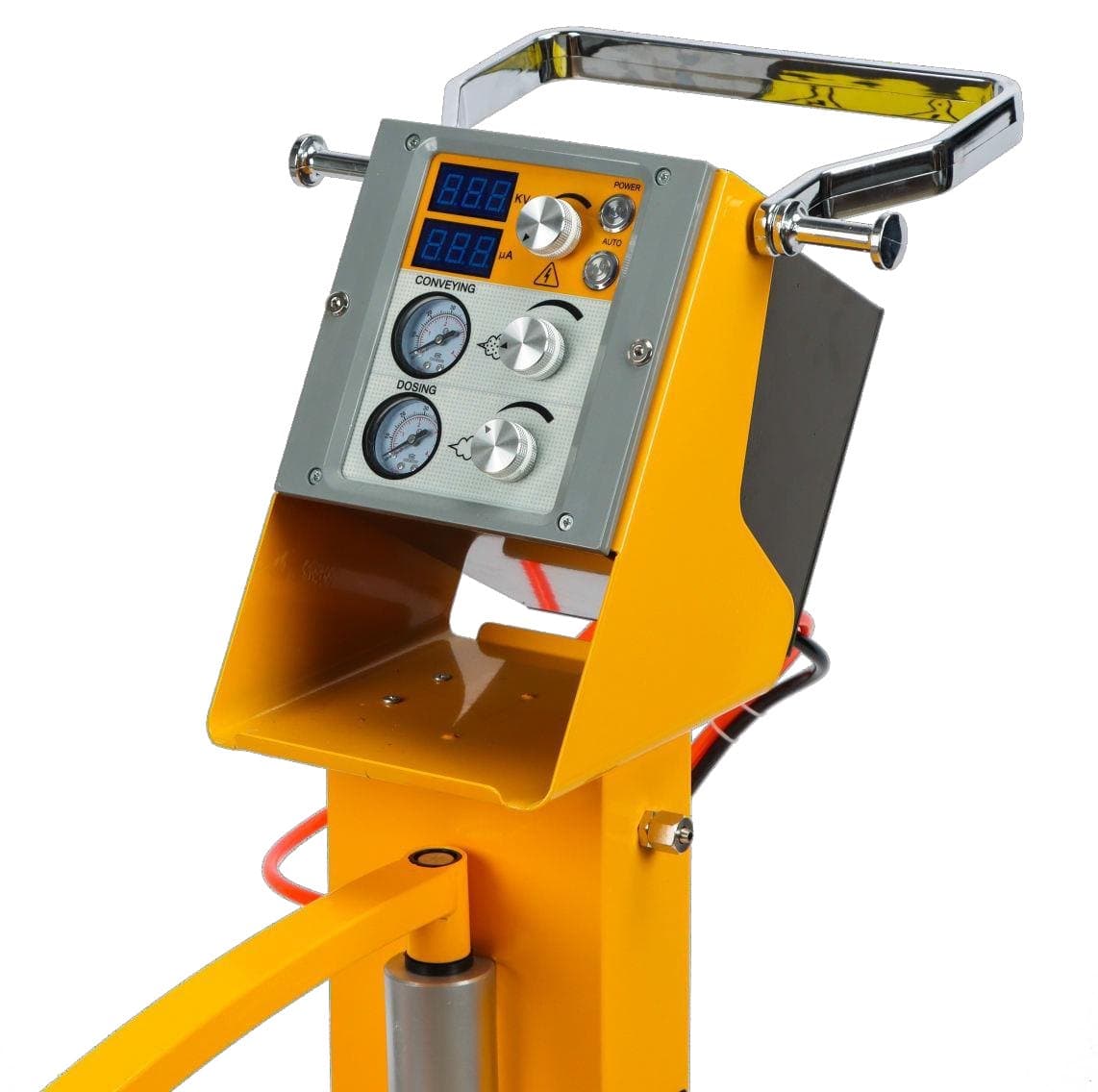

Powder Coating Spray Machine
KBE-668 Vibration
Box-feed system that conveys powder directly from the original box — suited to frequent colour change.
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
Overview
The box-feed type system conveys powder directly from the original box to the gun, so users do not need to clean a container during colour change. It suits the demands of frequent colour change.
Key Features
- Box-feed type: powder conveyed directly from the original box to the gun
- No container cleaning during colour change
- Suits frequent colour change
Technical Specifications
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
- Output Power Voltage
- 0–100 kV
- Input Air Pressure
- 0.3–0.6 MPa
- Output Air Pressure
- 0–0.4 MPa
- Powder Consumption
- Max. 550 g/min
- Polarity
- Negative
- Gun Weight
- 480 g
- Length of Gun Cable
- 5 m
