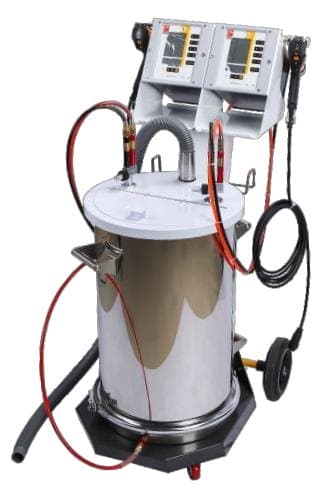

Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.

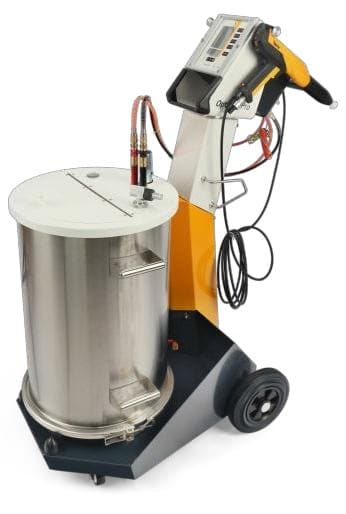

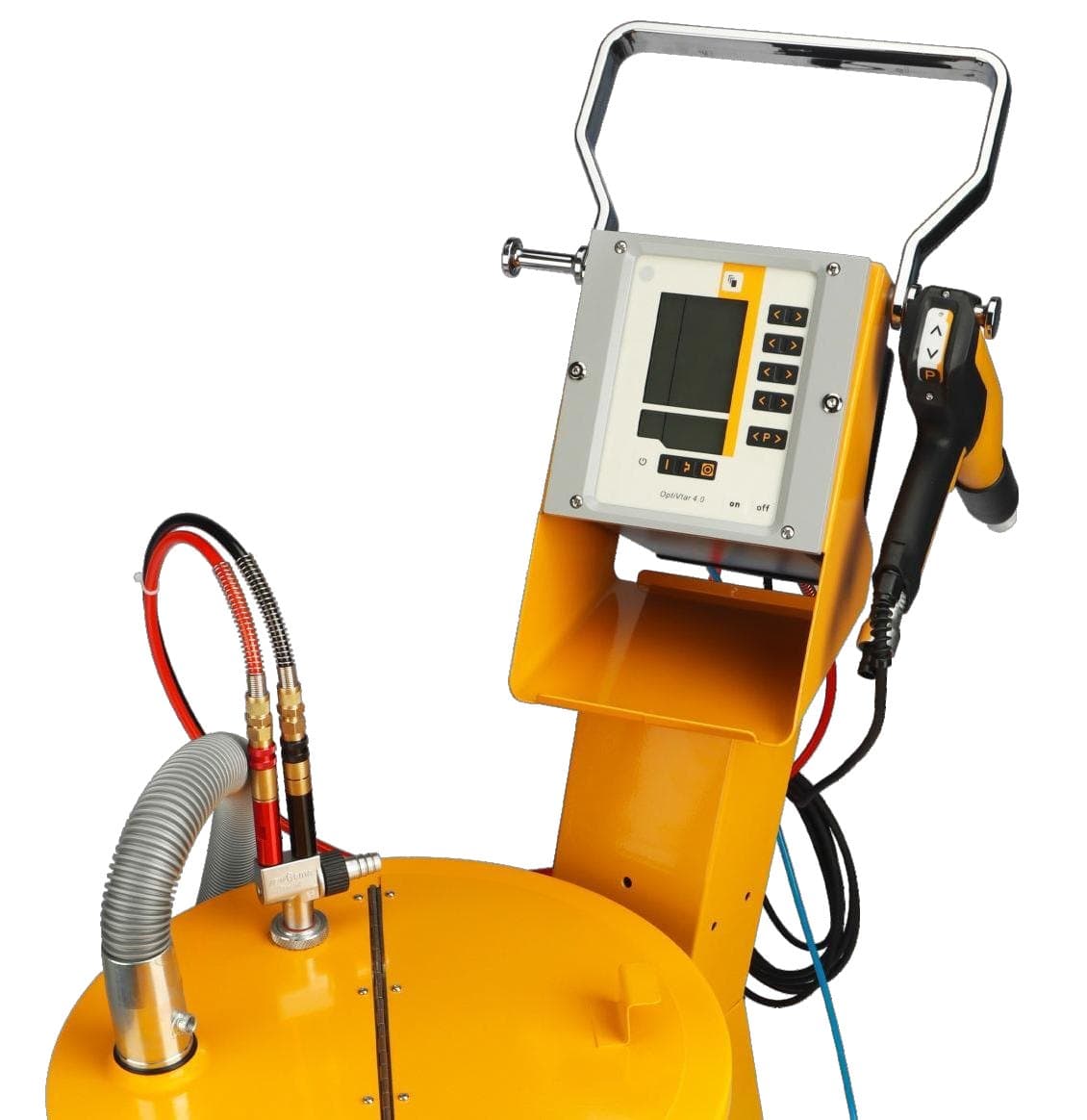

Powder Coating Spray Machine
KBE-669
Multifunctional intelligent coating equipment with up to 85% powder charging rate and 3 coating modes.
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
Overview
Multifunctional intelligent coating and spraying equipment. Its advantages are high accuracy, high efficiency, reliable performance and long service life.
The powder charging rate is as high as 85%, and with 3 coating modes it is suitable for coating metal profiles, wheels, furniture, cabinets and shelves.
Key Features
- High accuracy, high efficiency, reliable performance and long service life
- Powder charging rate as high as 85%
- 3 coating modes
Applications
- Metal profiles
- Wheels
- Furniture
- Cabinets
- Shelves
Technical Specifications
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
- Output Power Voltage
- 0–100 kV
- Input Air Pressure
- 0.3–0.6 MPa
- Output Air Pressure
- 0–0.4 MPa
- Powder Consumption
- Max. 550 g/min
- Polarity
- Negative
- Gun Weight
- 480 g
- Length of Gun Cable
- 5 m
