Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.

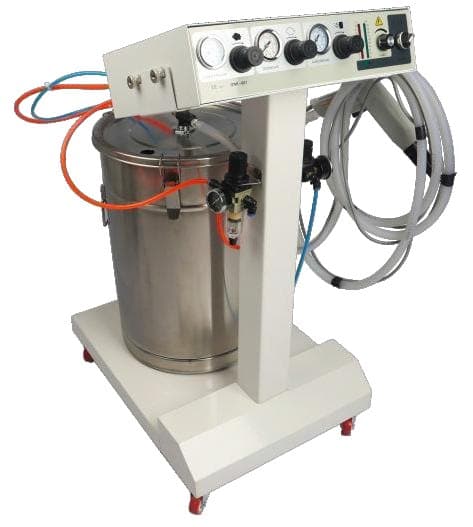

Powder Coating Spray Machine
KBE-851
Pre-programmed mode control unit with mechanical valve control for coating a wide variety of parts.
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
Overview

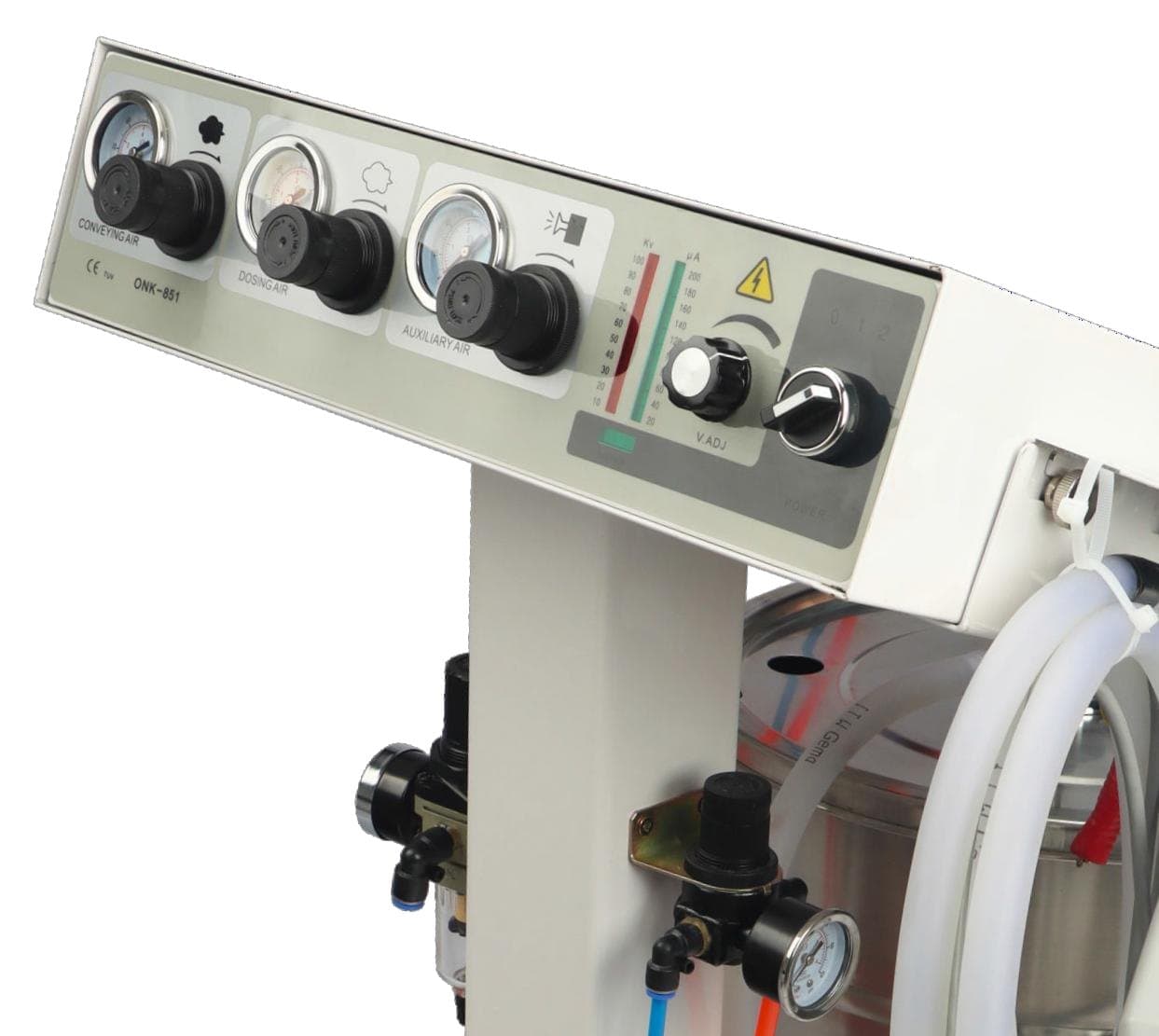

Pre-programmed mode control unit. The 851 features an innovative design with mechanical valve control options that allow you to easily coat a variety of parts.
Key Features
- Pre-programmed mode control unit
- Mechanical valve control options
Technical Specifications
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
- Output Power Voltage
- 0–100 kV
- Input Air Pressure
- 0.3–0.6 MPa
- Output Air Pressure
- 0–0.4 MPa
- Powder Consumption
- Max. 550 g/min
- Polarity
- Negative
- Gun Weight
- 480 g
- Length of Gun Cable
- 5 m
