Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.

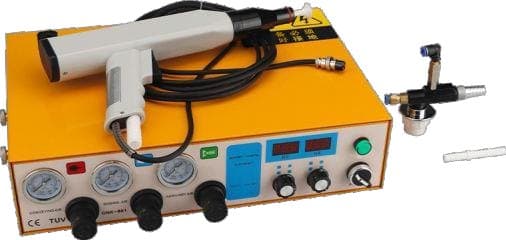

Powder Coating Spray Machine
KBE-861
Electrostatic powder coating machine with excellent transfer efficiency, ideal for medium to large production runs.
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
Overview
Electrostatic powder coating machine providing excellent transfer efficiency and a superior quality powder finish. It is ideal for medium to large production runs. The operator controls the voltage and current for maximum efficiency.
Key Features
- Excellent transfer efficiency and superior quality finish
- Ideal for medium to large production runs
- Operator control of voltage and current
Technical Specifications
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
- Output Power Voltage
- 0–100 kV
- Input Air Pressure
- 0.3–0.6 MPa
- Output Air Pressure
- 0–0.4 MPa
- Powder Consumption
- Max. 550 g/min
- Polarity
- Negative
- Gun Weight
- 480 g
- Length of Gun Cable
- 5 m
