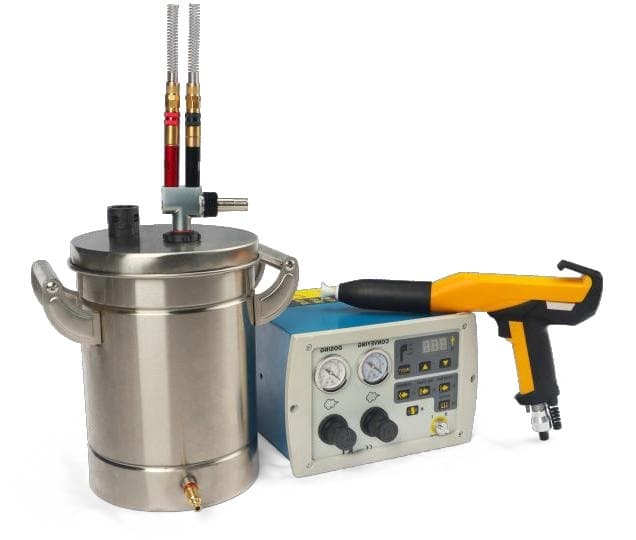

Powder Coating Spray Machine
KBE-K1
Practical model for beginners and experienced users, with an inclined vibration cart for frequent colour change.
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 80 W
- Max. Output Current
- 100 µA
Overview

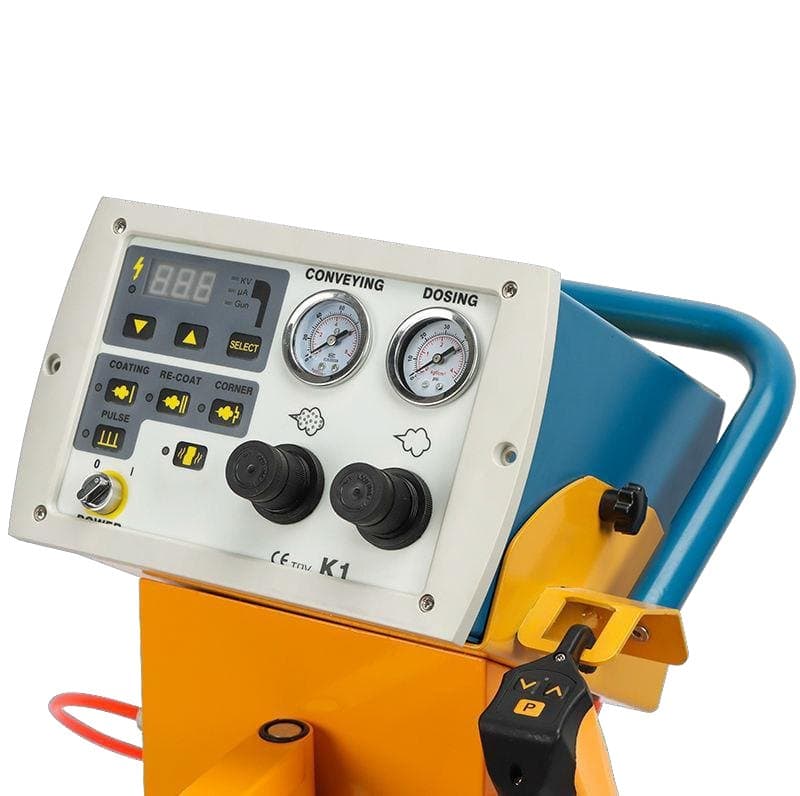

An extremely practical model for both beginners and experienced users, offering great flexibility to set accurate electric and pneumatic parameters for optimal results on different parts.
An inclined cart with vibration motor allows smooth powder conveying from the original box — ideal for frequent colour change applications.
Key Features
- Suitable for both beginners and experienced users
- Accurate setting of electric and pneumatic parameters
- Inclined cart with vibration motor for smooth powder conveying from the original box
- Ideal for frequent colour change applications
Technical Specifications
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 80 W
- Max. Output Current
- 100 µA
- Output Power Voltage
- 0–100 kV
- Input Air Pressure
- 0.3–0.6 MPa
- Output Air Pressure
- 0–0.4 MPa
- Powder Consumption
- Max. 550 g/min
- Polarity
- Negative
- Gun Weight
- 480 g
- Length of Gun Cable
- 5 m
